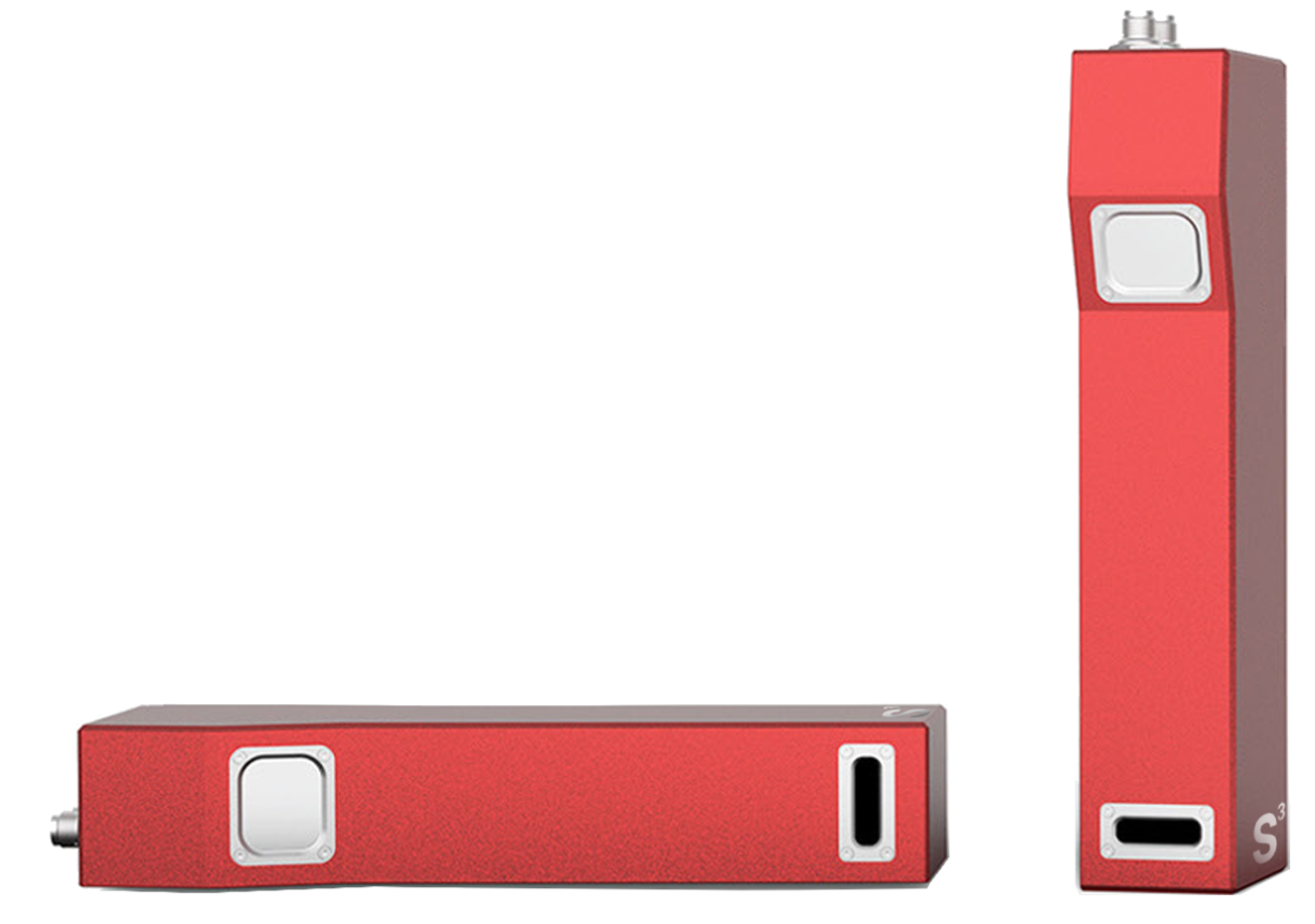

Hot Product Laser Line 3D Camera (SSL-A Series)

Laser Line 3D Camera (SSL-A Series)

SSL‑A series laser‑line 3D profile cameras apply laser triangulation principle. Optional binocular design eliminates blind spots. Featuring high‑precision repeatability, built‑in data processing without extra controllers. It outputs 3D point‑cloud data for online inspection across multiple industrial scenarios.

Hot

Download Catalog Request Quote

Key Specifications

Flexible DeploymentMultiple compact aluminum‑bodied variants with different sizes and weights, widely applicable for 3C, automotive, new‑energy and general‑industry inline metrology tasks.

Excellent Measurement AccuracyFine Z‑axis repeatability down to 0.3 μm, low linearity error and minimal temperature drift. Optional blue / red laser adapts to varied surface properties for stable 3D profiling.

Robust Industrial‑grade HardwareIP67 aluminum housing, validated vibration & shock resistance, reliable performance under industrial temperature‑humidity conditions.

High‑density & High‑speed Profiling PerformanceUp to 4096 profile points and 49000 Hz scan rate, delivering dense profile data for high‑speed inline production inspection.

Comprehensive‑coverage SSL‑A Laser Profiler PortfolioRich model options cover reference distances from 20 mm up to 1144 mm, supporting micro‑precision to long‑range measurement to meet diverse working‑distance requirements.

Overview

Product Overview

Laser Line 3D Camera (SSL-A Series)

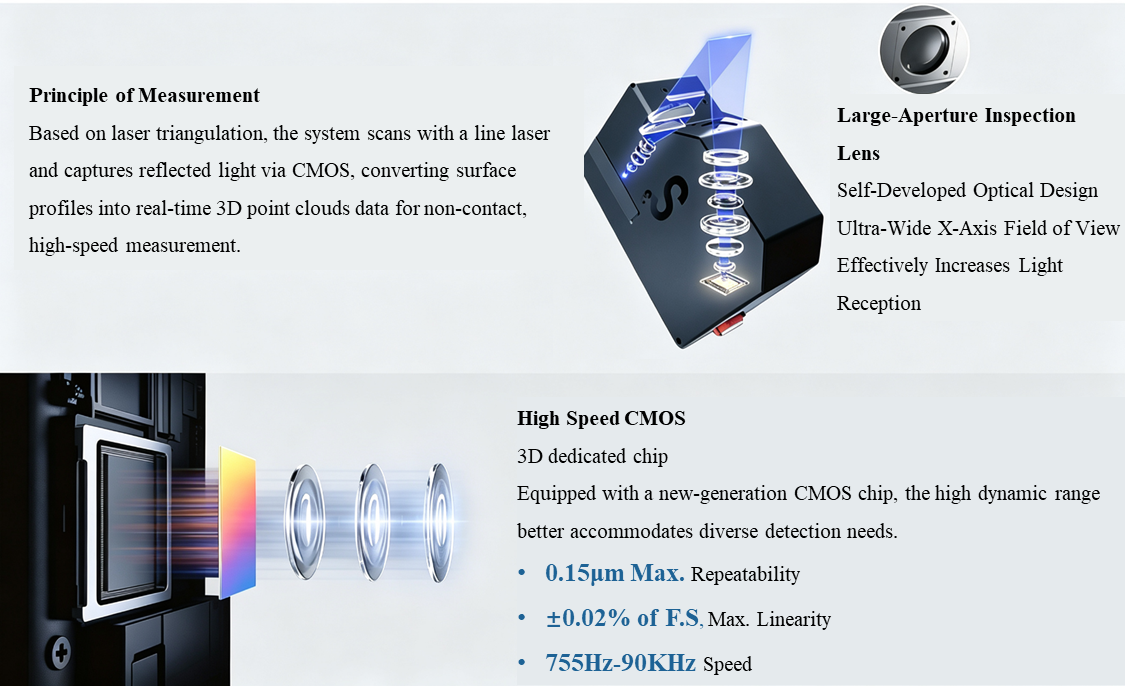

The SSL‑A series are laser‑line 3D profile cameras based on laser triangulation. With optional binocular configuration for blind‑spot elimination, they provide high‑precision 3D point‑cloud outputs. Integrated data processing removes the need for external controllers, supporting high‑speed online inspection for diverse industrial applications.

Porduct Features:

Professional optical system delivers ultra‑high measurement precision, captures tiny features, reduces cycle time and profile distortion, up to 8000 X‑axis profile points.
Smart built‑in data processing: supports HDR, center extraction and stray‑light suppression, adapts to varied lighting and material reflectivity.
Optional binocular design eliminates monocular blind spots via dual‑sensor fusion, improves anti‑light‑interference performance and point‑cloud accuracy.

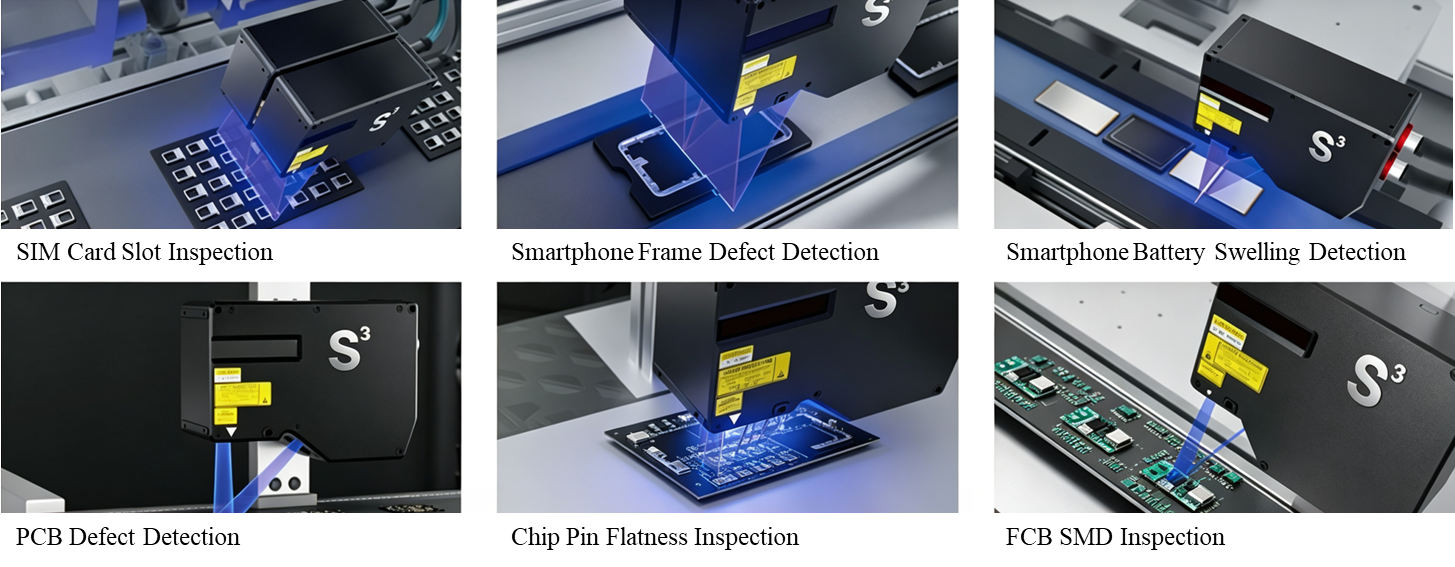

Maintains stable precision over large detection areas, supports high‑speed full‑surface scanning for online 3D inspection.

Equipped Application Software

Universal vision software for 2D positioning, defect detection and high‑precision 3D measurement
Graphical drag‑and‑drop configuration, seamless 2D/3D mode switching
Full tool library: image processing, calibration, geometric measurement, recognition, communication, plus comprehensive 2D & 3D detection functions
